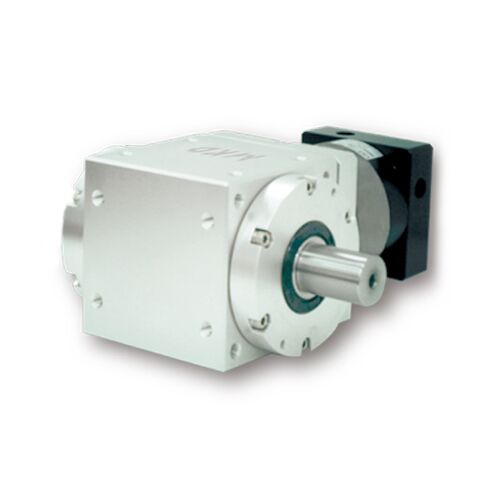

AAW-A(B)S-P Single Output Shaft Right Angle Gearbox

Category 90 Degree Gearbox Tags 90 Degree Gearbox, Spiral Bevel Gearbox

Features of AAW-A(B)S-P Precision Gearbox

High strength. Using nickel-chromium alloy steel SCM415 HRC60 degrees and high-precision spiral bevel gear.
High efficiency.Combined with high-efficiency planetary mechanism and precision spiral umbrella mechanism.
High rigidity. Using excellent rigidity structure and double tapered bearings which is suitable for occasions where the output load changes greatly.
Variousoutput methods. Big hollow shaft rotary flange type, big hollow shaft tight ring type, flange keyed type, single output shaft type and double output shaft type are available.
Easy to install. AAW series 90 degree reducer can beinstalled in five directions.

Indication of Model Numbers of AAW-A(B)S-P Single Output Shaft Type of Precision Right Angle Gearbox

Description of AAW-A(B)S-P Shaft Output Gearbox

The MKD AAW-A(B)S-P series servo gearboxes are produced with ten models with frame sizes from 80mm to 320mm. This series speed reducer gearboxes are designed with double output shafts, light in weight, small in volume, and space-saving. As a precision planetary gearbox, AAW-A(B)S-P is still featured low backlash, high torque, low noise, and high efficiency. By using high-quality materials and high processing technology, the AAW-A(B)S-P speed reducers can be divided into three classes: standard backlash, precision backlash, and micro backlash. Besides, AAW-A(B)S-P series helical gearboxes offer ratios from 1:2 to 1:500 to match with different brands of servo motors.

Parameter of AAW-A(B)S-P Shaft Output Gearbox

Technical Data of AAW-A(B)S-P Right Angle Gear Reducer

Ratio: 1:2~1:500
Small in size and space-saving: frame size from 80mm to 320mm
Output torque: from 30Nmto 4000Nm
Helical bevel gear module: from M1.0 to M6.0
Applicable servo motor capacity: 0.1kw~45kw
Output shaft type: single output shaft type

For more detailed technical data, please check the second and third tab bar.

Application of AAW-A(B)S-P Planetary Reducer

The MKD AAW-A(B)S-P precision speed reducers are widely used in printers, belt conveyors, gantry robots, auto packing sealing machines, packing machines ( vertical pillow), packing machines ( horizontal pillow), dispenser Robot, loader robot, and some other heavy load case.
