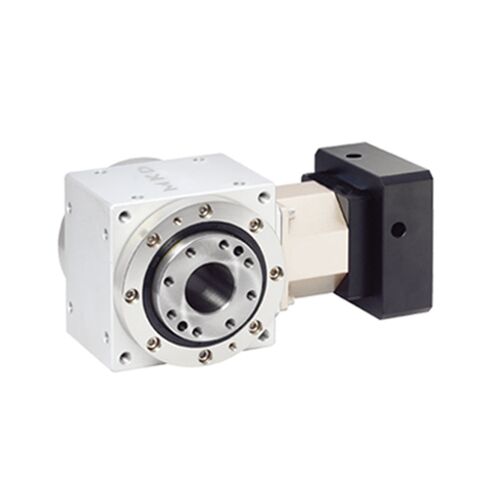

AAW-A(B)S-RF Big Hollow Shaft Rotary Flange Precision 90 Degree Gearbox

Indication of Model Numbers of AAW-A(B)S-RF Big Hollow Shaft Gearbox

Description of AAW-A(B)S-RF Flange Mounted Gearbox

The MKD is a speed reducer manufacturer. The servo motor gearbox AAW-A(B)S-RF produced by MKD is a kind of precision right angle gear reducer that is specially designed for equipping the servo motors. It features of the big hollow output shaft with a rotary flange. In the application of servo control, the MKD AAW-A(B)S-RF flange mounted Gearbox has played a good mechanical rigidity, accurate precision positioning, low backlash in the operating mechanism, high efficiency, high input torque, smooth operation, low noise and other characteristics. In addition, AAW-A(B)S-RF planetary gearbox is with the structure of one-piece design and light in weight, small in a volume that enables the servo motor operates in a higher, more efficient situation, and greatly reduce the load inertia and increase the output torque.

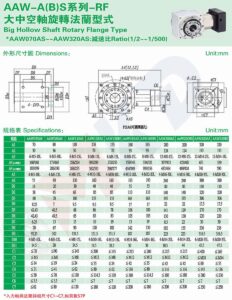

Parameter of AAW-A(B)S-RF Servo Gearbox

Fields of Application of MKD AAW-A(B)S-RF Small Gearbox

The MKD AAW-A(B)S-RF electric motor gearbox is widely used in heavy load occasions, such as the TFT-LCD flipped panel, the rotating mechanism, the base of the robotic arm rotates, the swinging arm rotates, and the indexed rotation.

Technical Parameters of AAW-A(B)S-RF Precision Gearbox

1.High output torque: The rated output torque of 1-stage is up to 4000 Nm and the maximum output torque is 2.5 times as high as the rated output torque.

2.Backlash class:

Standard backlash: L1≤5 arc-min  L2≤8 arc-min

Precision backlash B1: L1≤2 arc-min  L2≤3 arc-min

Precision backlash B2: L1≤3 arc-min  L2≤4 arc-min

*Special type：Ultra-precision backlash：L1≤1 arc-min  L2≤2 arc-min

3.Applicable servo motor capacity: 0.1kw~ 45kw

4.Ratio of reducer: AAW070AS~AAW320AS(BS)

1-stage: 1~30   2-stage: 24~300
