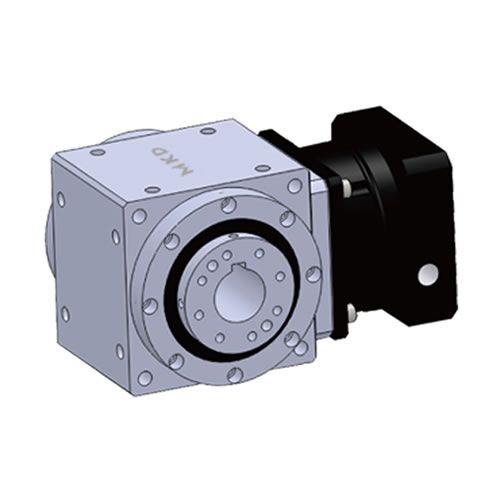

AAW-A(B)S-RFK Flange Keyed 90 Degree Gearbox

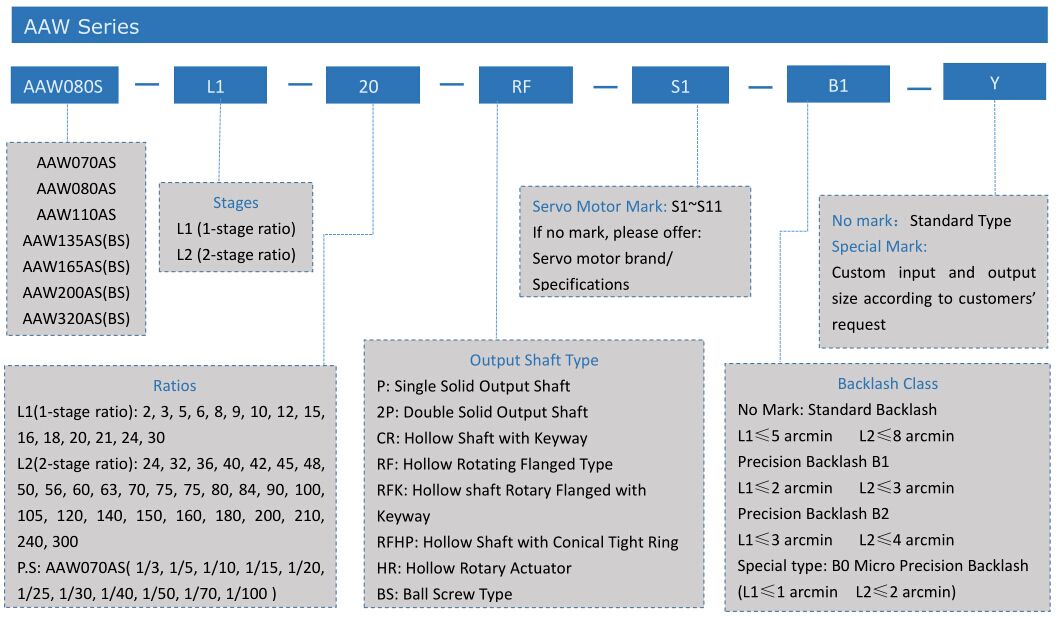

Indication of Model Numbers of AAW-A(B)S-RFK Hollow Shaft Gearbox

Description of AAW-A(B)S-RFK Flange Mounted Gearbox

The MKD AAW-A(B)S-RFK precision planetary gearbox designed of the flange with key groove and also called 90-degree gearbox is small in size and light in weight with high torque, high efficiency, low inertia distance. AAW-A(B)S-RFK flange mounted gearbox is designed for large-span and heavy-load bearing so that it’s more suitable for heavy industry. The input of the gear box can be matched with various servo motor and stepper motor, allowing high input speed and versatility. The gear surface is ground and vibration-free. The right angle gearbox with flange keyed type can guarantee the safety of reducer.

Parameter of AAW-A(B)S-RFK 90 Degree Gearbox

Application of AAW-A(B)S-RFK Right Angle Gearbox

The MKD AAW-A(B)S-RFK servo motor gearboxes are widely applied in heavy load occasions, such as the coupling mechanism, belt conveyor, CNC machine tools, bag making machinery, plastic machinery, printing machinery.

Materials of AAW-A(B)S-RFK Servo Gearbox

The chassis of MKD AAW-A(B)S-RFK planetary gearbox is built in aluminum material in order to guarantee lightness, strength and rigidity. The gear with high-quality alloy steel and treated with carbon-nitrogen achieves the best wear resistance and impact toughness.
