AT-4M Series Spiral Bevel Gearbox

Category 90 Degree Gearbox Tags 90 Degree Gearbox, Servo Gearbox

Features of AT-4M Right Angle Spiral Bevel Gearbox

Low noise
Compact Structure
Easy Installation
Output Nominated Torque T2N: 12 Nm – 3,200 Nm
Speed Ratio: 1-stage for 1
Low backlash: ≤6arcmin
High Efficiency: 1-stage ≧ 98%

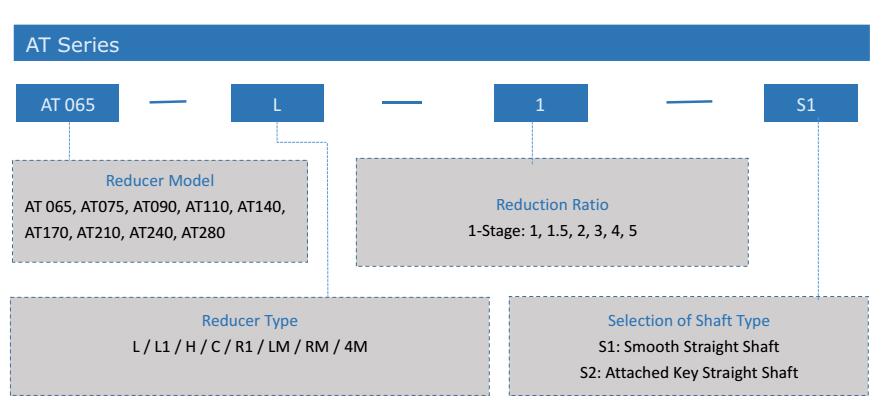

Indication of Model Numbers of AT Steering Gearbox

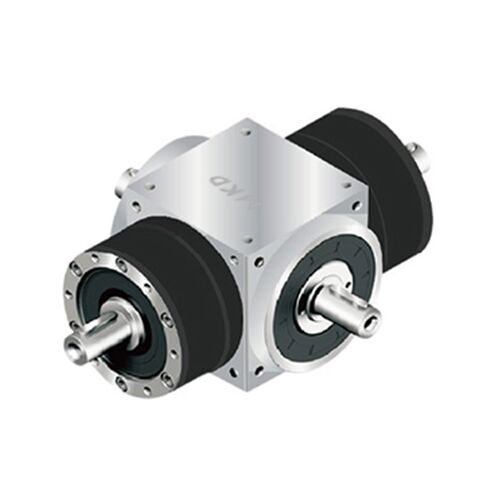

Description of AT-4M High Precision Spiral Bevel Gearbox

The MKD AT-4M series steering gearbox is a 1:1 ratio servo gearbox with a design of spiral bevel gears inside. It features of four drive shafts joined by three spiral bevel gears. The special design of AT-4M spiral bevel gearbox is suitable for operations of continuous operation mode (S1) and cycle operation mode (S5). AT-4M right angle gearboxes are widely used in line shaft applications and especially for servo applications.

MKD provides nine models for your choice: AT065 4M, AT075 4M, AT090 4M, AT110 4M, AT140 4M, AT170 4M, AT210 4M, AT240 4M, AT280 4M.
