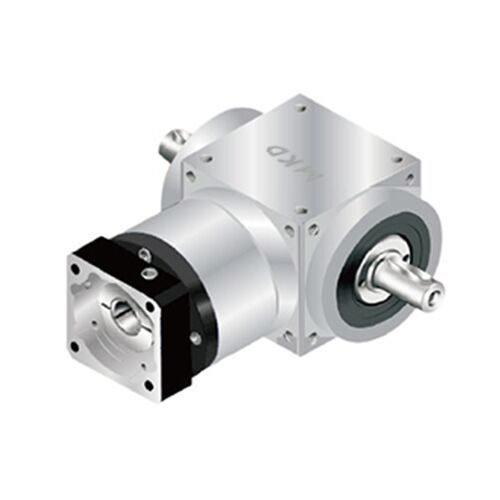

AT-FL Right Angle Gearbox 1 to 1 Ratio

Overview of 3D drawing of AT Right Angle Gearbox

Indication of Model Numbers of AT Steering Gearbox

Description of AT-FL High Precision Spiral Bevel Gearbox

The MKD AT-FL series planetary gearbox is a kind of servo gearbox, especially for servo applications. It features a right angle outline with spiral bevel gears transmission mechanism. And AT-FL speed reducer is designed with double shafts output and flange input configuration. They are also widely used in transmission solutions applications.

Parameter of AT-FL Servo Gearbox

Features of AT-FL Double Output Shaft Servo Gearbox

● High torque and low backlash design of the compact structure is suitable for the
application of precision servo.
● Integrated stainless steel body ensures maximum rigidity and corrosion resistance. Multiple precision machined surfaces for easy assembly.
● Multiple stainless steel output and input shaft designs can be applied to various industrial applications needs.
● The combination of high-precision ground worm bevel gear set and the optimized the design of planetary gear set can make the reduction speed up to 500:1.
● Patented oil seal design, maintenance-free without replacing the lubrication oil
, long operating life.
● The adoption of the top spiral worm gear design software and the optimized design of contact tooth surface make the even load and allow high torque output.
● Gears are made of high-strength carburizing alloy steel and the grinding precision is up to the standard of DIN 5 level.

Application of AT-FL Speed Reducer

The MKD AT-FL right angle spiral bevel gearboxes are widely used in semiconductor liquid crystal manufacturing equipment, robots, machine tools, and other frontiers that require precision motion control.
