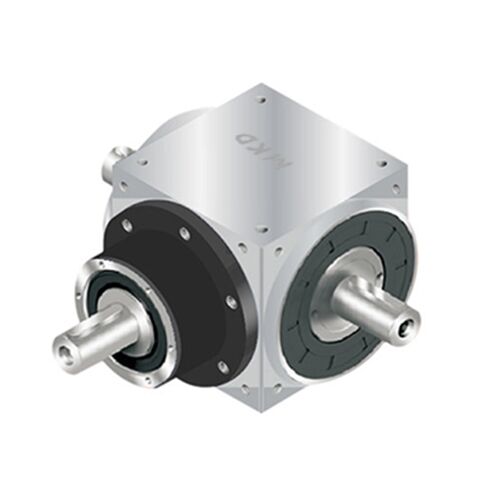

AT-L DOUBLE OUTPUT SHAFT BEVEL GEARBOX

Category 90 Degree Gearbox Tags 90 Degree Gearbox, Spiral Bevel Gearbox

Overview of AT-L Right Angle Gearbox

High rigidity of AT-L bevel gearbox thanks to high precision spiral bevel gears made of nickel-chromium alloy steel SCM415 HR60°
The combination of a high efficient planetary structure and a precision spiral bevel structure enables high performance of the reducer
This series steering gearbox features high rigid construction. It adopts double conical bearing support, which is suitable for the applications that with big load change on the output end.
Compact size to save space for the installation.

Indication of Model Numbers of AT Steering Gearbox

Description of AT-L High Precision Spiral Bevel Gearbox

The MKD AT-L series speed reducer is a kind of right angle gearbox that belongs to spiral bevel gearbox that features with one input shaft and two output shafts. They are widely used in servo applications and power transmission solutions.

AT-L right angle gearboxes are designed of the integrated stainless steel body, which contributes to maximum rigidity and corrosion resistance. Easy assembly due to multiple precision machined surfaces. And high torque output thanks to the inside design of top-grade worm bevel gear, which are made of high strength carburizing alloy steel and the machining precision is up to the standard of DIN 5 level. High torque low backlash AT-L speed reducer is featured with the compact structure which is suitable for precision servo applications. Besides, this series of speed reducer gearboxes are featured with patented oil seal design, maintenance-free, and long service life.

Parameter of AT-L High Precision Spiral Bevel Gearbox

Application of AT Shaft Output Steering Gearbox

AT-L spiral bevel gearboxes are widely used in Printer, belt Conveyors, gantry robot, auto packing sealing machine, packing machine ( vertical pillow ), building machinery, packing machine ( horizontal pillow ), dispenser Robot, loader robot, rubber and plastic machinery, environmental machinery, lifting, ceramics machinery, metallurgical machinery, electrical machinery, food packing, and dyeing machinery, beverage machinery, petrochemical industry, stage machinery, etc.
