AT-LM (RM) DOUBLE OUTPUT SHAFT OPPOSITE DIRECTION STEERING GEARBOX

Indication of Model Numbers of AT Steering Gearbox

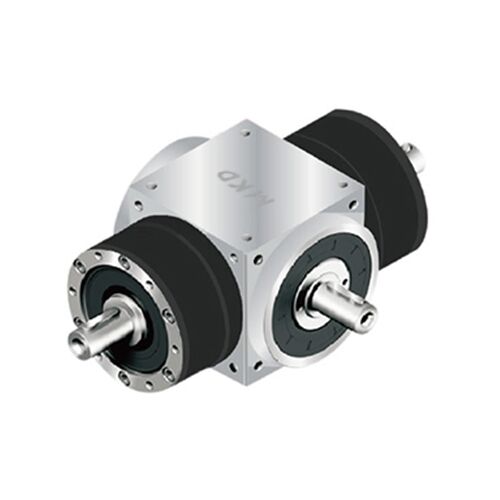

Description of AT-LM / RM Right Angle Gearbox

 The MKD AT-LM/RM series steering gearbox is a right angle spiral bevel gearbox with torques up to 8,000 Nm. There are three shafts inside the gearbox that joined by three spiral bevel gears which have proven their high precision with very low backlash in the servo application and power transmission shafting applications. AT-LM/RM speed reducer is designed with the single input shaft and double output shafts in an opposite rotating direction. This series reducer features with low transmission error, quiet operation, shock resistant, space-saving, overload capability, etc.

Although AT-LM/RM steering gearbox is with miniature gears, MKD sets new standards in dimensions, accuracy, weight, efficiency. The unique design of AT right angle gearbox provides a broad range of drive technology applications.

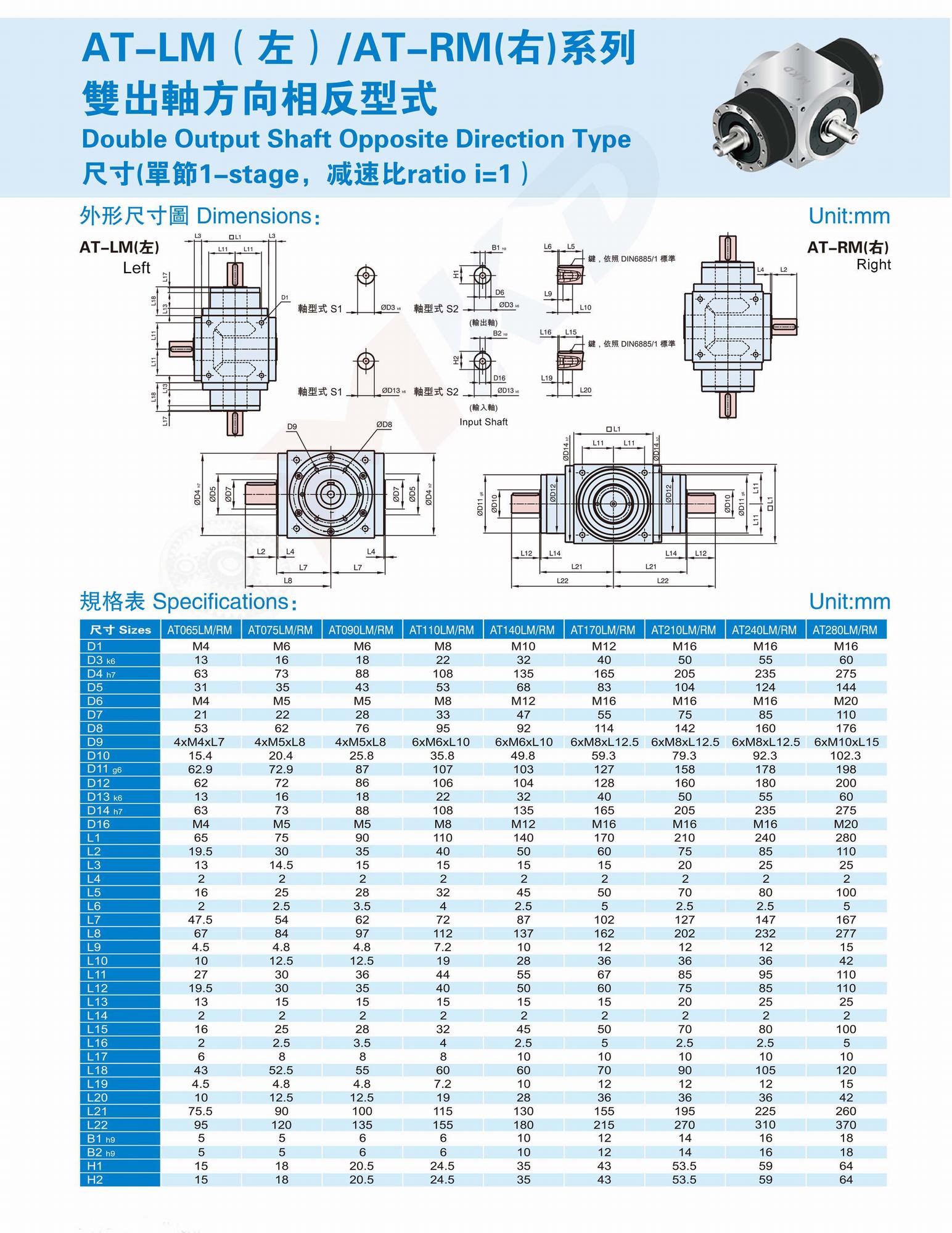

Parameter of AT-LM / RM Right Angle Gearbox
