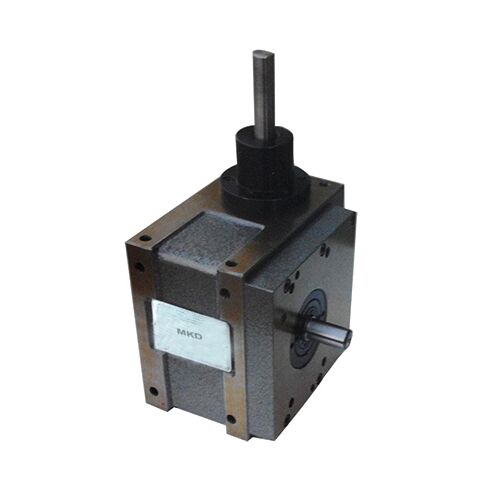

DH-FN SPINDLE TYPE CAM INDEXER

Descriptions of DH-FN Spindle Type Cam Indexer

The cam indexer is also called a cam indexing unit and it is a high precision rotary device that has a simple structure with stereoscopic cam and split disk. The output shaft of the spindle type cam indexer has small rotational inertia when operating which is suitable for high-speed operation. What’s more, the output shaft is designed as a round shaft with a key that is suitable for connecting with the sprocket, coupling, sleeve, gear, and other components. Besides, it has a large load capacity which could bear greater radial force or axial force.

Features of DH-FN Spindle Type Cam Indexer

• High position accuracy

The high precision processing technology ensures the precision and service life of the roller, what’s more, the DH-FN spindle type cam indexer could operate at high speed and low speed with heavy load occasions.

• Stable performance in high-speed operation

The rotary bearing of the MKD spindle type cam indexer adopts imported NSK tapered roller bearings with high quality, low noise, small friction coefficient, and high load capacity.

• Good sealing

The oil seal of Taiqi spindle type cam indexer adopts imported TTO oil seal with high-temperature resistance, compression resistance, wear-resistance, and oil resistance.

• High rigidity & high strength

The cam adopts the advanced alloy steel, which is treated with carburizing heat and high precision grinding.

Applications

The DH-FN spindle type cam indexers of Taiqi are widely used in automatic group machine, conveying machinery, medicine machinery, food machinery, automatic feeding machinery, multi-position machine tool, printing machinery, packaging machinery, food machinery, glass machinery, pharmaceutical machinery, tobacco machinery, automatic testing machine and so on.

Indication of Model Numbers of DH-FN Spindle Type Cam Indexer

Specification Table of DH-FN Spindle Type Cam Indexer
