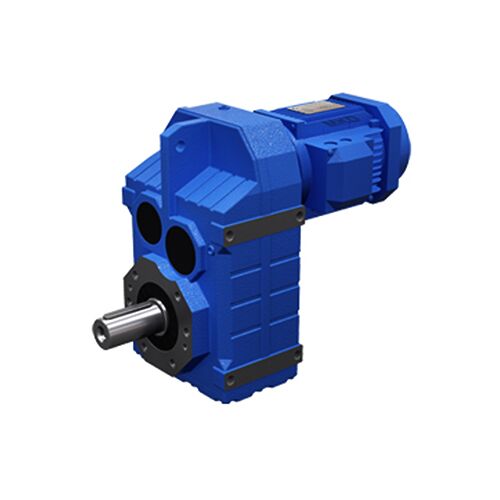

F SERIES PARALLEL SHAFT HELICAL GEAR MOTOR

Category High Power Gear Motor Tag Gear

Features of F Series Parallel Shaft Helical Gear Reducer

Models of MKD Gear Motor: F37, F47, F57, F67, F77, F87, F97, F107, F127, F157
Construction Forms: F, FA, FF, FAF, FAZ.
Input Power: 0.18~200kw.
Transmission Ratio: 3.81~280.76.
Allowable Torque ( N.m ): 200~18000.

Description of F Series Parallel Shaft Helical Gear Motor

MKD F series parallel shaft helical gear reducer features low energy consumption, superior performance, and efficiency up to 95%.
MKD F series parallel shaft helical gear motors possess features of space-saving, reliable & durable, and high overload capacity. Its power can be up to 90KW or more.
MKD F parallel shaft helical gear reducers are manufactured combined with international technical requirements, which features high technology content.
The parallel shaft helical gear reducer features small vibration, low noise, and high energy saving. Besides, high-quality forging steel materials are selected and the gearbox is made of rigid casting iron. In addition, the gear surface has proceeded with high-frequency heat treatment.
All the Taiqi gear reducers are proceeding with a precision process to ensure the axis parallelism and positioning accuracy, which constitutes the gear drive assembly of the reducer. Integrated with the configuration of various types of motor, a mechanical and electrical integration has been formed to guarantee the quality of the geared motor.

Structure Diagram

1.housing 2. retaining rings for shafts I 3. input gear 4.retaining rings for bores I 5. seal I 6.gear shaft II 7. bearing I 8. seal II 9.bearing II 10. gear shaft III 11.retaining rings for bores II 12.output shaft seal 13. Output shaft 14. flat key I 15. flat key II 16. bearing III 17. retaining rings for bores III 18.spacer tube III 19. bolt 20. cover plate 21. breather value 22. bolt 23.Motor seal 24. motor bearing 25. motor 26. flat key III 27. bearing IV 28.Gear I 29. bearing V 30. seal III 31. flat key IV 32. spacer tube II 33.Seal IV 34. bearing IV 35. gear II 36. retaining rings for bores IV 37. gear III
