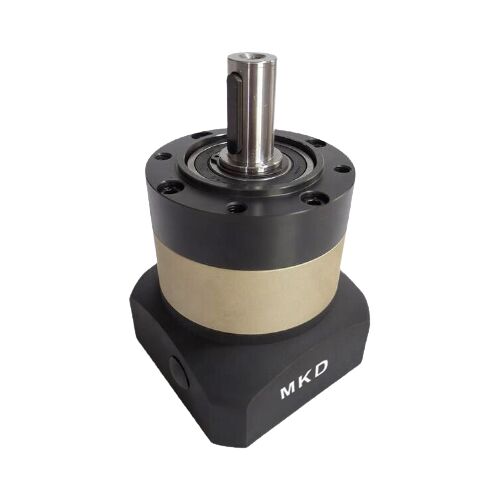

MLE Spur Gear Servo Planetary Gearbox for CNC Router

Features of MLE Planetary Gearboxes

Extremely light and powerful
Low backlash(3~8 arcmin)
High quality with an economy price
Low friction bearing design
High output torque(3 times of nominal output torque)
High efficiency (1-stage 96%, 2-stage 94%, 3-stage 90%)
Low noise(60DBA)
Flexible mounting position

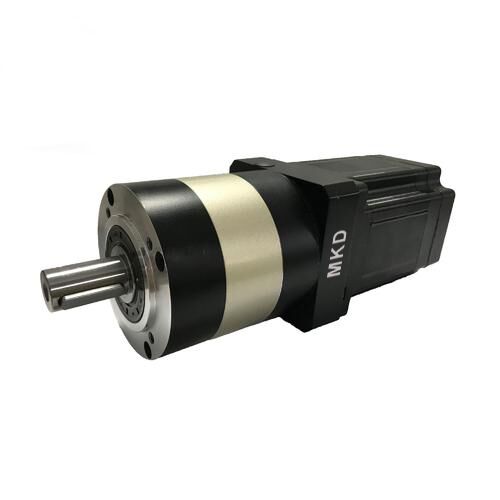

Easy to connect with the motor
Optimized lubrication with free maintenance

Description of MLE Economic Planetary Gearbox

MLE series precision planetary servo gearbox provides the advantages of high-cost performance, wide application, economic and practical, long service life, etc. in the application of servo control, it plays a good servo rigidity effect, accurate control, and has the characteristics of low back clearance, high efficiency, high input speed, high input torque, smooth operation, low noise, etc, The appearance and structure design is light and small.

Product features

According to the output direction, there are mainly two types: in-line type and right angle type
There are three grades: first-grade deceleration (generally less than 10:1), second-grade deceleration (generally greater than 10:1 but less than or equal to 100:1), third-grade deceleration (the maximum deceleration ratio is 100:1, the general division principle is greater than 100:1)
It can be divided into two categories according to the use: Civil and commercial.
According to the operating environment: quasi environment, low-temperature environment, clean room environment, and vacuum environment; Performance features: low return clearance, high output torque, high efficiency (96%). Reduction ratio i = 3:10000, low noise, high quality, arbitrary installation position simple motor installation, lifelong lubrication, more options.

MLE planetary gear reducer features

Cylindrical shell, small volume, compact structure, output end connection, easy installation. Application field: mainly used in packaging machinery, cutting equipment Textile printing, and dyeing equipment industry.

Technical Parameters

overall dimension: 40mm — 160mm

reduction ratio: 3 — 512

transmission torque: 5nm — 895nm

precision side clearance: ≤ 8arcmin

installation Type: Any Direction

Application of MLE Economic Planetary Gearboxes

MKD MLE inline gearboxes are an economic alternative to the high precision planetary gearboxes, which are widely used in the fields of machine tools, textile, printers, packaging machinery, rubber machinery, production lines, cutting machine, mechanical arm-gantry, aluminum doors, and windows equipment, sealing machines, testing machine, etc.

The material of MKD Gears, planet carrier, and housing

The ring gear of MKD is made of treated steel, which is a main part of the housing. And the sun and planet gears are made of hardened steel. Both bearing flanges are made of aluminum. The whole planet carrier and output shaft are made of ductile cast iron and have a sturdy design.
