MAB Series Planetary Gearbox

Description of MAB High Precision Planetary Gearboxes

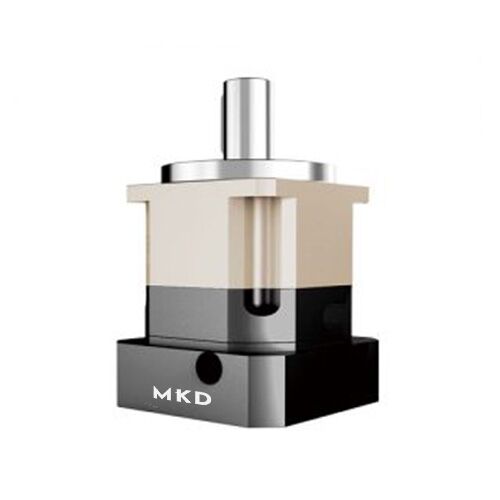

MB Series is a kind of super high precision and super high efficient planetary gearbox, with double support output, long span, high stability, wide surface of the sun gear and planetary gear, larger related technical parameters to accomplish high-intensity work. All gears inside the MKD servo planetary gearbox are helical design, high bite rate, smooth continuous operation, low noise, low backlash. Integrated design of inner ring and shell, high precision, high wear resistance. Integrated connection board design makes it perfectly matches with all kinds of servo motors, and stepper motors perfectly. The lowest backlash, as high as 95% efficiency and lifetime lubrication, makes the MKD helical gearbox the best choice for customers.

MKD MB series planetary gearbox for servo motor is a good alternative gearbox to AB series of APEX gearbox. We have many customers who before used Apex planetary gearbox or spiral bevel gearbox now choose our MB gearbox or our right angle gearbox AT series in the category of the 90-degree gearbox.

Planetary gearbox models of Apex Dynamics: AB042 / AB060 / AB060A / AB090 / AB090A / AB115 / AB115A / AB142 / AB142A / AB180 / AB220

Planetary gearbox models of MKD Industrial: MAB042 / MAB060 /MAB060A / MAB090 / MAB115 / MAB142 / MAB180 / MAB220

Besides replacing the Apex gearhead, MKD MAB series servo motor gearboxes also can replace sesame gearbox, Shimpo planetary gearbox, Neugart gear head, Liming gearbox, Kofon planetary gearbox, alpha planetary gearbox, pht planetary gearbox, etc. Please send us the gearbox drawing or offer us the models or drawing of your servo motor and stepper motor, we shall help you select an equivalent planetary gearbox for you. If any technical questions, welcome to consult our sales engineer for free, we will try our best to support you all-round. As for the planetary gearbox price, we will offer you our better price than the above brand to reduce your spare part’s cost to increase the competitive power of your project or machine sales.

Overview of Specifications

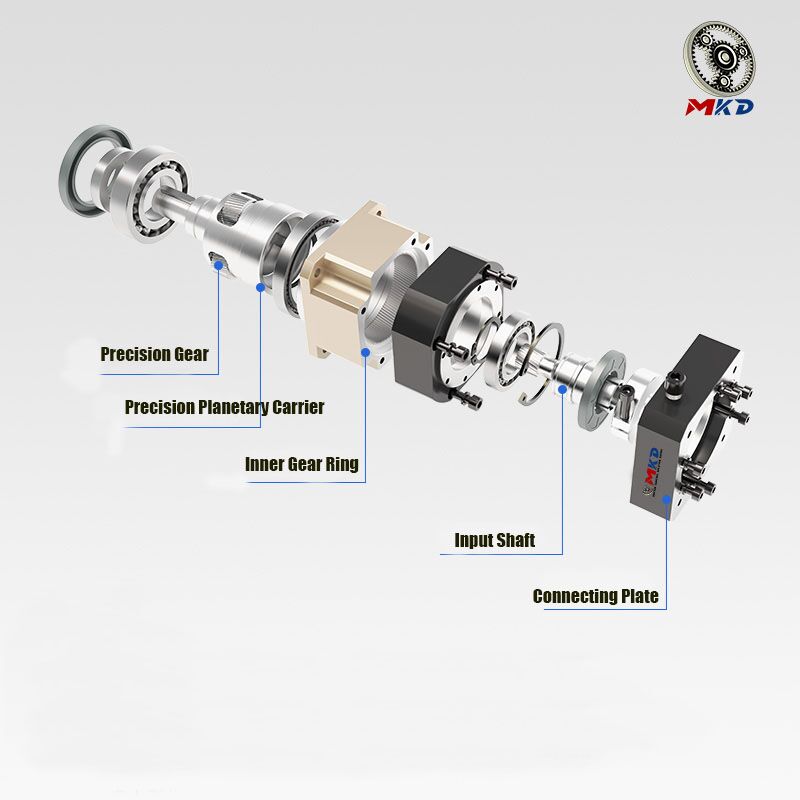

Inner Structure of MAB Precision Servo Gearbox

Features of MAB Series Planetary Servo Gear Reducer

The overall design allows the servo motor to input at high speed and achieve maximum torque output. Precision gear design and processing have characteristics of low operating backlash, high efficiency, low noise, and long life. The motor power is miniaturized, improving the stability of inertial load and reducing vibration.

Specification of MB Planetary Gear Reducer

Installation Steps of Precision Planetary Gearbox

Step One:  wipe off the anti-rusting additive and grease on the motor shaft.

Step Two: Remove the rubber plug.

Step Three: Rotate the input shaft to align the fastening bolt with the plug hole. Please make sure that the cap screw is loosened. If there is a shaft sleeve attached, please install it according to the figure below.

Step Four: Place the reducer vertically in a flat place so that the motor mounting face of the planetary gearbox is upward. Insert the motor shaft into the input shaft slowly to avoid hitting the input shaft. Please make sure that the flange of the motor is close to the flange of the servo gearbox. Tighten the motor mounting bolts based on the designated tightening torque (please refer to table 1)

Step Five: Use a torque wrench to tighten the clamping bolt according to the designated fastening torque（ Refer to table 1)

Step Six: Install the rubber bolt. The whole installation procedure is finished.

Inner Construction Configuration of MB Planetary Gear Head

The lubrication structure of the MKD planetary gearbox is mainly applied to the inner screw gear structure to ensure high-efficient output. On one hand, it could reduce the axial thrust generated by the running of the planetary gears. On the other hand, it could increase lubrication, and reduce friction and noise.

1. High precision integrated corner block system

2. The wider gear surface and larger parameters make the high strength of the planetary gearbox realized.

3. All gears inside the MKD servo planetary gearbox are helical design, high bite rate, smooth continuous operation, low noise, low backlash.

4.Integrated design of inner ring and shell, high precision, high wear resistance.

5. Integrated connection board design makes it perfectly matches with all kinds of servo motors, and stepper motors perfectly.

Application of MAB High Precision Planetary Reducers

MKD servo gearboxes have been widely applied in ships, radars, submarines, aviation industry, aerospace, data communication systems, robots, mechanical arms, CNC router, CNC milling machines, women’s products machinery, dental machines, composite materials equipment, cutting and welding equipment, laser machines, textile machinery, printing and dyeing machinery, packaging machinery, printing machinery, servo food machinery, medical machinery, precision testing instruments, testing machines Stamping technology, plastic machinery, glass machinery, lifting machinery, metallurgical machinery, engineering machinery, and university research institutes, etc.

MKD motor reducers successfully applied industries: polishing machine, paper equipment, solar energy equipment, CNC gantry milling machine, CNC cutting machine, glass equipment, bending machine, automotive equipment, dental machine, milling machine, reciprocating machine, engraving machine, woodworking machinery, bottle blowing machine, aluminum curtain door and window equipment, injection molding, LED equipment, battery winding machine, optical disc equipment, circuit board equipment, packaging equipment (filling machine), experimental equipment, Computer horizontal knitting machine, coating machine, steel bending hoop machine, screen printing machine, flat-screen printing machine, ceramic printing machine, automatic winding machine, wind turbine, photovoltaic equipment (single crystal furnace), spring machinery, etc.

Configurations of MAB Precision Planetary Reducer Gearbox

• Aluminum alloy die-casting ADC12 is used to make the housing and the flange of the MKD gearbox.
• Planetary gears’ material of MB precision gearbox is, the surface hardness value of MB planetary reducer is about HRC58~62, and the inner hardness data is around HRC33~40
•  20CrMnTi is the material of the planetary gears of the MB servo gearbox. The surface hardness of the MB planetary reducer gearbox could reach HRC58~62 and inner hardness can be up to HRC33~40, which highly ensures the gear box’s high rigidity.
• Good material of 40Cr is used to make the ring gears.
• High precision gears are applied in MKD planetary gear systems to ensure the high precision of the whole gearbox.
• A motor bushing and hollow shaft with a key groove are used on the input of the MKD servo gear reducer to adapt all sizes of servo motors or stepper motors.
•  MKD can customize the servo gearbox according to the specific requirement of the customers. Output shaft with a key, hollow shaft output with a key groove inside, output shat with round shaft are three options that available.
• MKD servo gearboxes can mount on all brands of AC servo motors or stepper motors on the market. For example, Siemens servo motor, ABB servo motor, Lenze servo motor, MOOG servo motor, Fanuc servo motor, Kawasaki servo motor, Mitsubishi servo motor, Omron servo motor, Yaskawa servo motor, Panasonic servo motor, Nema stepper gearbox, lead shine servo motor, etc.
