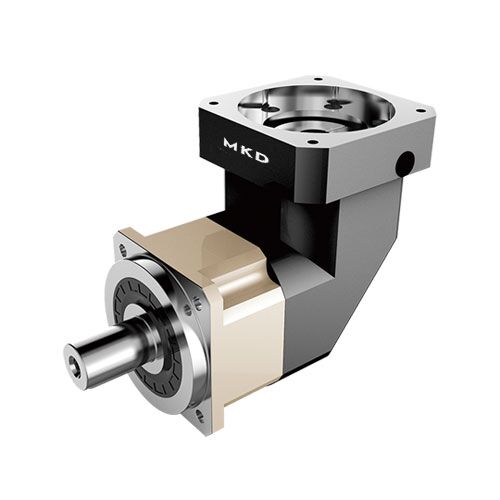

MBL Precision Right Angle Planetary Gearbox

Description of MBL High Precision Planetary Gearboxes

MKD MBL gearboxes are a kind of precision planetary reducer produced with a 90 degree angle to offer a solution to solve the space problem. The inner construction is designed with spiral bevel gears which feature better meshing performance, smooth transmission, and low noise.

MKD offers a broad range of planetary gearboxes for customers’ selection including inline gearboxes, right angle gearboxes, hollow shaft gearboxes, etc. MKD is focused on researching and developing new products using high-quality MBLts, which ensures our gearboxes are produced with high performance and efficient, low noise, so that can help customers reduce the running cost and improve productivity. Usually, MKD MBL planetary gearbox offers high efficiency of up to 97%, which is much higher than our competitor’s 80% efficiency.

The MBL Series is a right angle planetary gearbox that is ideal for motion control applications wherein the power flow needs to be redirected. The input flange design is suitable for most of the stepper motors, servo motors, AC or DC motors. With the same cost of the gearbox, ours can offer higher torque and efficiency. Free maintenance thanks to good synthetic grease which is another outstanding feature of our MBL speed reducer.

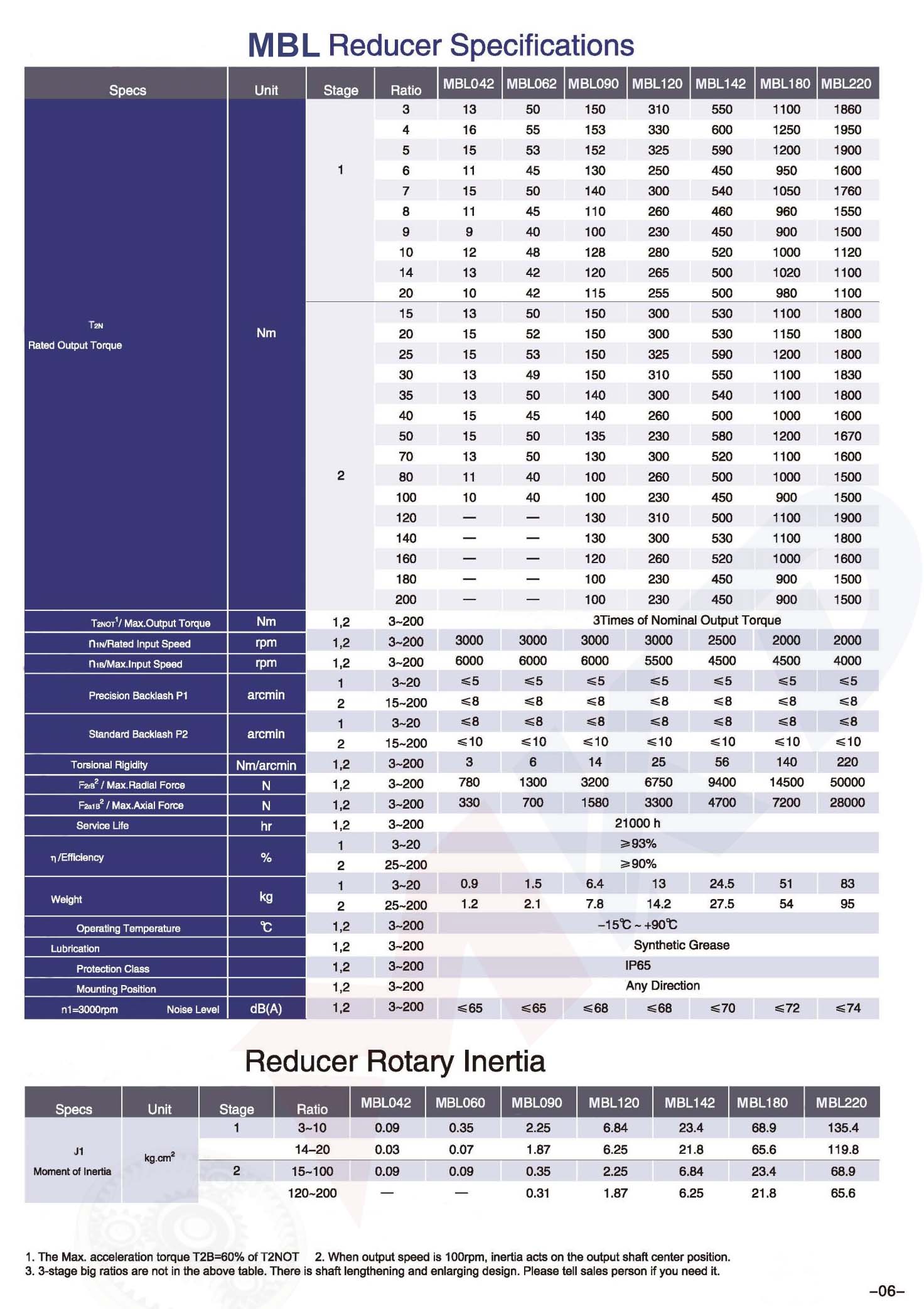

Overview of MBL Technical Parameters

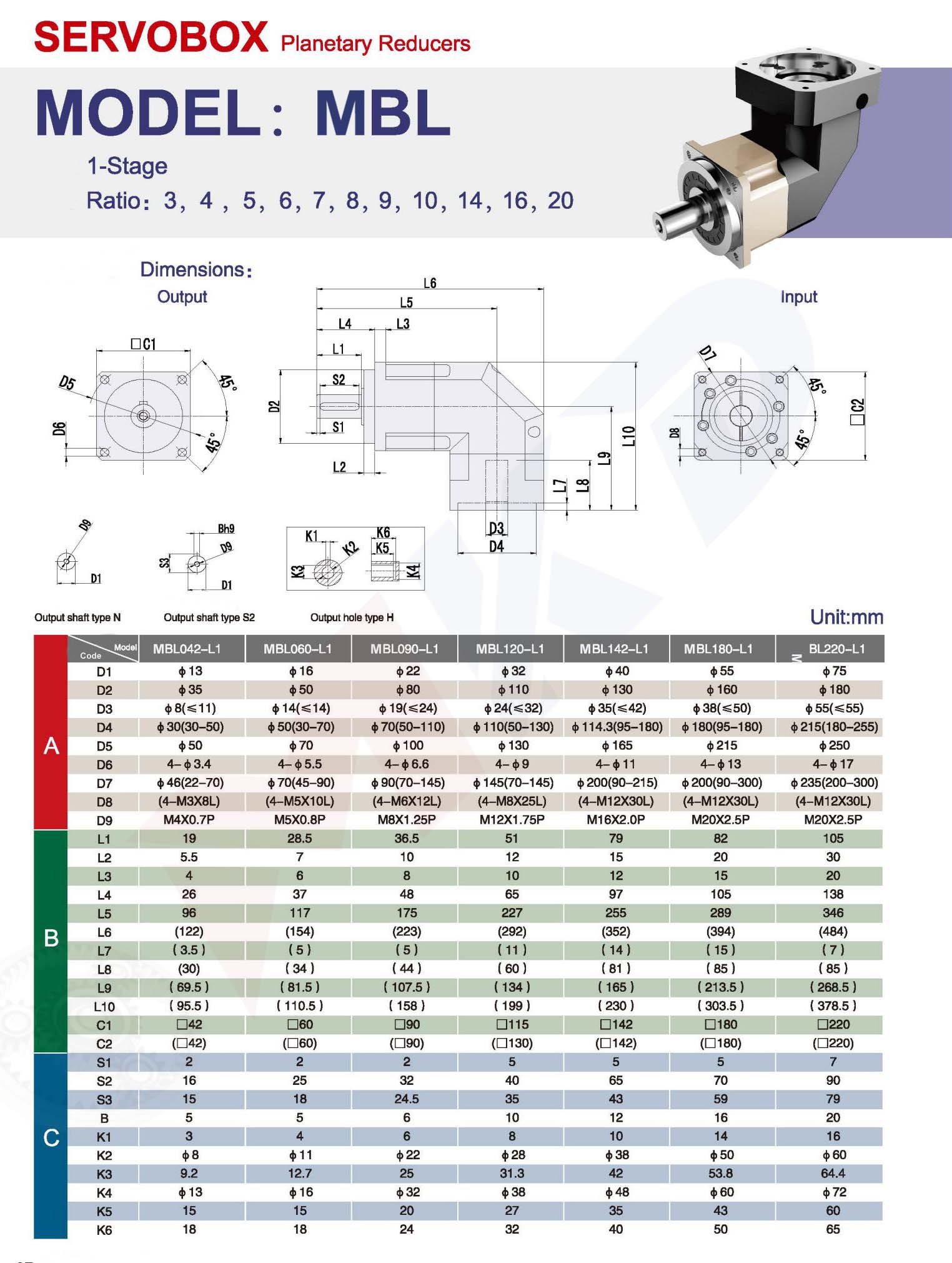

1)Gearbox outline dimension: 42,60,90, 115, 142, 180, 220
2)Reduction ratio: 3, 4, 5, 6, 7, 8, 9, 10, 14, 20 ( Single Stage )
15, 20, 25, 30, 35, 40, 50, 70, 80, 100, 120, 140, 160, 180, 200 ( Two Stage )
3) Lubrication: Lifetime lubrication with the use of fully synthetic grease
4) Rated Input speed: 3000— 8000rpm
5) Service Life: >20, 000 hours
6) Backlash: for P1 precision 1-Stage:≤ 5 arc min, 2-Stage: ≤ 8 arcmin
for P2 precision 1-Stage:≤ 8 arc min, 2-Stage: ≤ 10 arcmin
7)Operating temperature: -15°C to +90°C
8)Protection Class: IP65
9)Noise Value: ≤65~75 DBA
