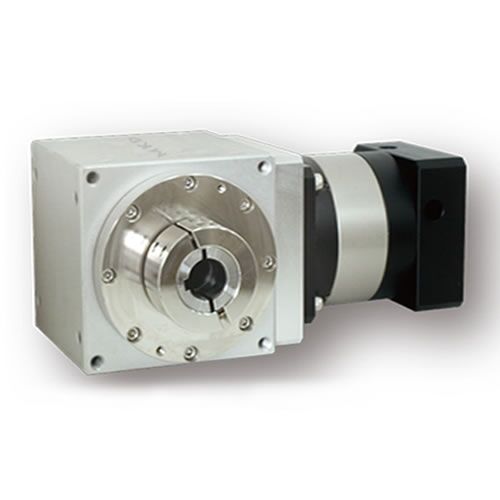

PAW-C-K Single Hollow Shaft 90 Degree Gearbox

Indication of Model Numbers of PAW-C-K Single Hollow Shaft Keyed 90 Degree Gearbox

Description of PAW-C-K Spiral Bevel Steering Gearbox

The MKD PAW-C-K steering gearbox is designed with single hollow shafts with clamp type and keyway, which is belong to planetary reducer due to the design of planetary gears structure inside. There are nine models of PAW070A, PAW085A, PAW105A, PAW125A, PAW150A, PAW 150B, PAW180A, PAW180B for selection. There are two kinds of PAW-A and PAW-B. Take PAW150A and PAW150B servo gearboxes, for example, the difference between A and B is the different length of the whole gearbox for different stages. Please check the sizes in the catalogue pages in the third tab bar. The MKD PAW-C-K series planetary gearboxes features of low backlash, solid construction, high efficiency, and are widely applied in fields that require high precision like motion control.

The PAW-C-K series single hollow shaft keyed right angle gearbox of MKD is made of high-quality die-casted Aluminum alloy material in a small size. The box structure design saves the installation space and it could connect with the workpiece in any direction. Besides, the speed reducer with a hollow shaft could match with different mechanical components such as the rotating flange, groove key and conical ring to meet different requirements.

Parameters of PAW-C-K Spiral Bevel Steering Gearbox

Features of PAW-C-K Spiral Bevel Steering Gearbox

1. High strength

With the using of nickel-chromium alloy steel SCM415 HRC60 degrees and high-precision spiral bevel gear, the MKD PAW-C-K series right angle gearbox features of high rigidity and high strength.

2. High transmission efficiency

The PAW-C-K series steering gearbox combines with high-efficiency planetary mechanism and precision spiral umbrella mechanism and the transmission efficiency is up to 95%.

3. Large load capacity

PAW-C-K speed reducer uses excellent rigidity structure and double tapered bearings which is suitable for occasions where the output load changes greatly

4. Good adaptability

It has good adaptability which could match with any brands servo motor and stepper motor all over the world.

Applications

The MKD PAW-C-K series single hollow shaft keyed right angle gearbox is widely used in a printer, belt conveyors, gantry robot, auto packing sealing machine, packing machine ( vertical pillow), packing machine ( horizontal pillow), dispenser Robot, loader robot and some other heavy load case.
