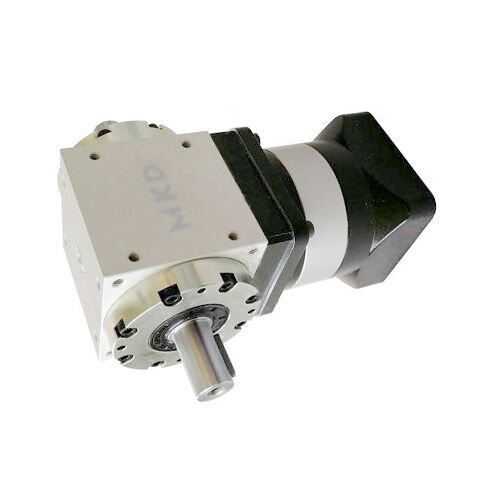

PAW-2P DOUBLE OUTPUT SHAFT GEARBOX

Category 90 Degree Gearbox Tags 90 Degree Gearbox, Spiral Bevel Gearbox

Overview of PAW-2P Steering Gearbox

● 90 Degree Precision Speed Reducer.
● Double output shaft type.
● The capacity of the matched servo motor: 0.1kw~15kw.
● Hollow shaft with conical tight ring enables the speed reducer suitable for heavy load occasion.
● Applicable to precision positioning or repeated positioning but limited to space.
● Integrated design of gearbox and gear.

Indication of Model Numbers of PAW-2P Double Output Shaft 90 Degree Gearbox

Description of PAW-2P Spiral Bevel Steering Gearbox

The MKD PAW-2P series planetary gearbox is a kind of double shaft output standard steering gearbox, which is suitable for precision positioning and repeated positioning and widely used in applications where there is a need of changing direction due to the limited operating space. The application lines include packing equipment, automation equipment, semiconductor industry equipment, etc. The integrated design of the gearbox and gear contributes to high torque and high rigidity of the speed reducer. It is easy to install and applicable to match all brands of servo motors.

Models of the PAW-2P helical gearbox：PAW055A, PAW070A, PAW085A, PAW105A, PAW125A, PAW125B, PAW150A, PAW150B, PAW180A, PAW180B.

The reduction ratio is from 1/3~1/100. For more dimensions, please check the second tab bar.

Parameters of PAW-2P 90 Degree Gearbox

Features of PAW-2P Series Servo Gearbox

High mechanical rigidity

The PAW-2P series spiral bevel right angle gearbox adopts an integrated design, with high mechanical rigidity, low noise and easy installation for servo motors of various brands.

High-precision closed transmission

The spiral bevel gear is made of high-quality low-carbon alloy steel which is carburized, quenched, ground, in order to achieve high-precision closed transmission.

Any installation direction

Due to the advanced square box structure, the PAW-2P series right angle gearbox could mount with the workpiece in any direction.

Application

The PAW-2P series right angle gearbox of MKD is widely used in CNC machine tools, medical equipment, semiconductor equipment, precision measuring instruments, mechanical arm, laboratory equipment, printing machinery, pharmaceutical packaging machinery, energy companies, beverage machinery, food machinery and other industries.
