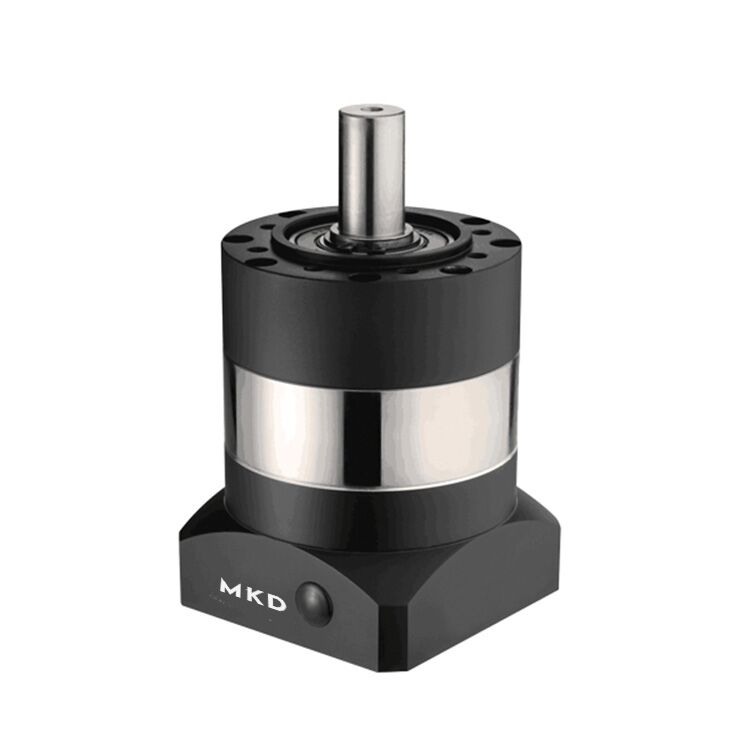

PLE Inline Planetary Gearbox

Features of PLE Planetary Gearboxes

Extremely light and powerful
Low backlash(3~8 arcmin)
High quality with an economy price
Low friction bearing design
High output torque(3 times of nominal output torque)
High efficiency (1-stage 96%, 2-stage 94%, 3-stage 90%)
Low noise(60DBA)
Flexible mounting position
Easy to connect with the motor
Optimized lubrication with free maintenance

Description of PLE Economic Planetary Gearbox

MKD PLE series planetary reducer is a kind of spur gearbox which is designed especially for stepper motor and servo motor. MKD PLE planetary gearboxes are standard type and cost-saving precision gearbox for customers who have a limited budget. This series gearbox has a cycloid main body and it is designed without flange to meet different requirements of customers. MKD spur planetary gearboxes to have speed ratios from 3-100 and with input stair diameters from φ30-150mm, which can greatly meet customer’s different application needs. For more detailed dimensions, please download the MKD product catalog from the website. These precision gearboxes are widely matched with servo motors or stepper motors of brands like Panasonic, Fanuc, SIEMENS, Matsushita, Mitsubishi, Lenz, Yaskawa, etc.

Specification

Parameter/Model	PLE040	PLE060	PLE080	PLE120	PLE160
Input sizes	8-30-46-M4	14-50-70-M4	19-70-90-M5	24-110-145-M8	35-114.3-200-M12
Diameter of Output (mm)	12	14	20(22)	25(32)	40
Rated Output Torque (Nm)	12~17	25~40	100~112	141~165	293~423
Adaptable motor power	50/100w	100/200/400w	200/400/500/750w/1.0kw/1.5kw	500w/1kw/1.5kw/2kw/3.5kw/5kw	2kw/3.5kw/5kw/7kw/11kw

Transmission Construction of Planetary Gearbox

For a single-stage planetary reducer, the main transmission structure consists of an internal gear, three planetary gears, and one sun gear.

Application of PLE Economic Planetary Gearboxes

MKD PLE inline gearboxes are an economic alternative to the high precision planetary gearboxes, which are widely used in the fields of machine tools, textile, printers, packaging machinery, rubber machinery, production lines, cutting machine, mechanical arm-gantry, aluminum doors and windows equipment, sealing machines, testing machine, etc.

The material of MKD Gears, planet carrier, and housing

The ring gear of MKD is made of treated steel, which is a main part of the housing. And the sun and planet gears are made of hardened steel. Both of bearing flanges are made of aluminum. The whole planet carrier and output shaft are made of ductile cast iron and have a sturdy design.
