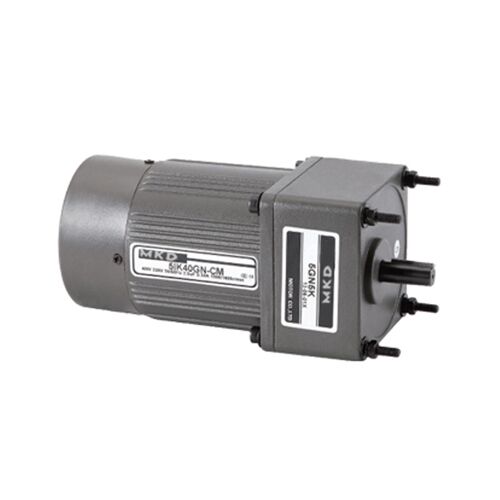

STANDARD INDUCTION GEAR MOTOR

Description of Induction Gear Motor

The motor power of the 70 types small gear motor is 15W and can be equipped with a fan and speed control. The voltage can be single-phase or three-phase, and the speed of the three-phase gear motor can not be adaptable. The reduction ratio is 3-300, and the reduction ratio can be designed and manufactured according to the user’s needs. The axis is 10mm.

The motor power of 80 type gear motor power is 25w and can be equipped with a fan, speed control, and electromagnetic brake. The voltage can be single-phase or three-phase, and the three-phase gear motor cannot be adjusted. The reduction ratio is 3-300, and the reduction ratio can be designed and manufactured according to the user’s needs. The axis diameter is 8mm and 10mm, and generally 10mm.

The motor powers of the gear motor are 40W, 60W, 90W, 120W, and can be equipped with a fan, speed control, and electromagnetic brake. The voltage can be single-phase or three-phase, and the three-phase gear motor cannot be adjusted. The reduction ratio is 3-300, and the reduction ratio can be designed and manufactured according to the user’s needs. The gearbox can be divided into GS type and GK type. In the GS model, the axis is 15mm. In the GK model, the axes are 12mm and 15mm.

The motor power of 100 types small gear motor can be 120w, 140w, 180w and can be configured a fan, speed control, and electromagnetic brake. The voltage can be single-phase or three-phase, and the three-phase gear motor cannot be adjusted. The reduction ratio is 3-300, and the reduction ratio can be designed and manufactured according to the user’s needs. The gearbox can be divided into GS type and GK type. And the axis diameter is 15mm.

1.Induction gear motor is composed of an induction motor and a gear head.
2.Usually, micro induction motors mean an induction-running type of motors. This type of motor uses not only solenoids and capacitors during starting but also during operation. Although the starting torque is not very large, it features high efficiency and can run continuously due to its simple structure and high reliability.
3.When a single-phase motor is running, torque is generated in the direction opposite to the running direction. Therefore, it is impossible to change the direction within a short time. Please change the direction of rotation after the motor is completely stopped.
4.The three-phase motor drives the induction motor with a three-phase power supply. The efficiency is very high and the starting torque is also relatively very large, and therefore it features reliability.
5. Induction motors are suitable for one-way continuous operation.

The motor power of 60 types of small gear motor is 6W and can be configured with a fan. The voltage can be single-phase or three-phase. The reduction ratio is 3–300 and the axis is 10mm.
