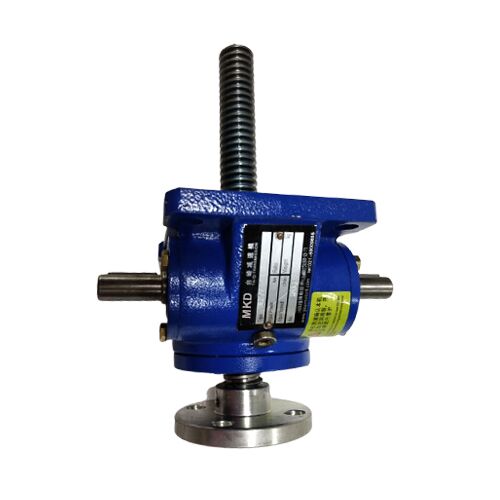

SWL Series Worm Screw Jack

Swl Screw Jack

Category Screw Jack Tag Screw Jack

Features of SWL Series Worm Screw Jack

High reliability and stability.
Various connection methods.
Easy to install with a compact design.
Can be customized according to customers’ needs.
Compact structure with small volume and lightweight.
It is suitable for low speed and low-frequency operation.

Description of SWL Series Worm Screw Jack

SWL screw Jack is a basic lifting device, it can achieve the functions of lifting, lowering, pushing, and turning through worm gear drive screw. The worm screw lift features of compact structure, small size, lightweight, low noise, safe and convenient installation, flexible use, high reliability, and long service life.

SWL series worm screw lift can be used individually or in combination. It can control and adjust the height of the promotion accurately according to a certain procedure. Besides, MKD screw Jack can be driven directly by motor or other power, and by manual is also available.

These worm gear screw lifts are mainly used for low speed, low-frequency operations. SWL series worm screw Jack widely used in machinery, metallurgy, water conservancy, chemical industry, medical treatment, culture, health and other industries.

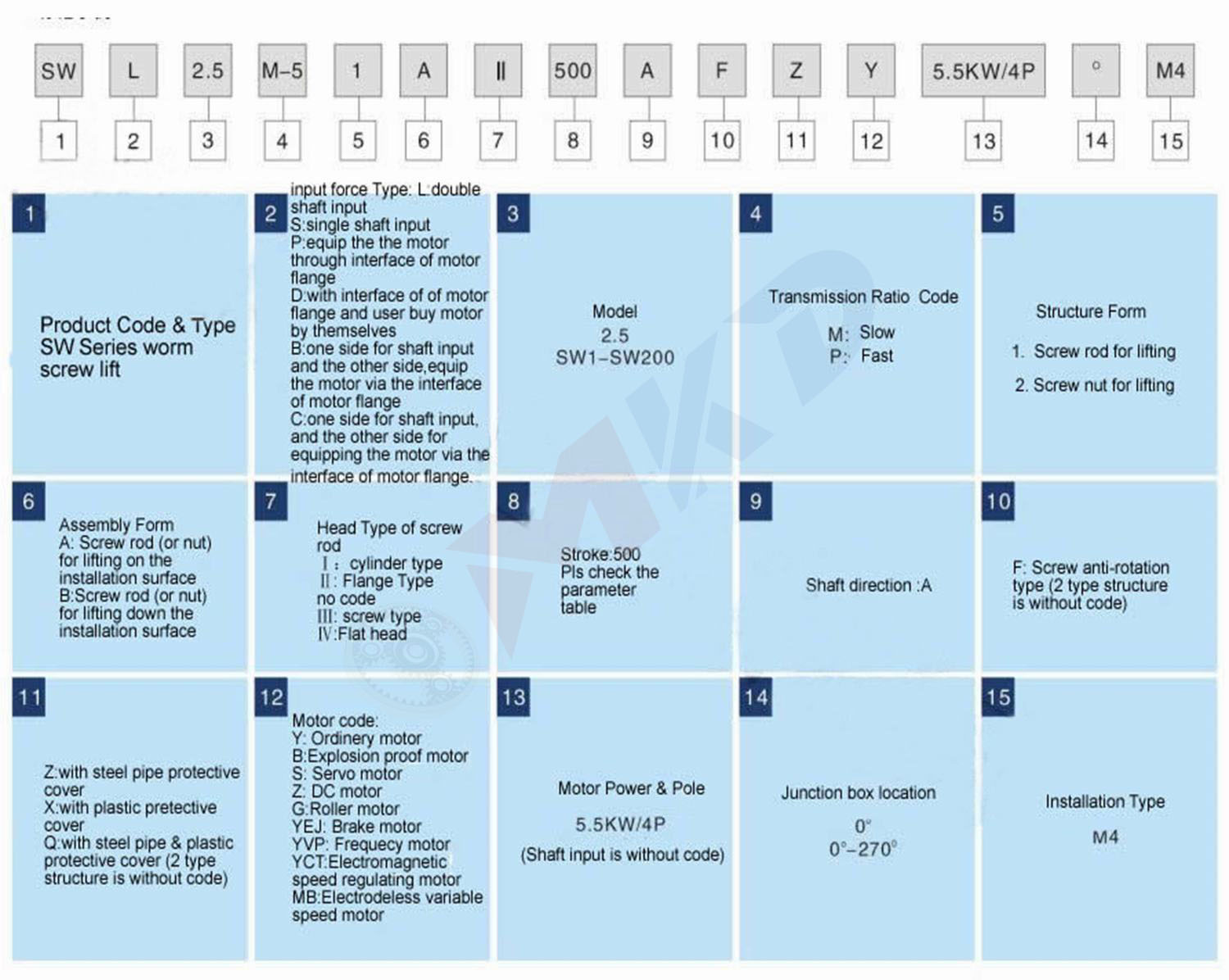

Model Indication
